2SK3055 - N-Channel MOSFET

2SK3055 Description

DATA SHEET MOS FIELD EFFECT TRANSISTOR 2SK3055 SWITCHING N-CHANNEL POWER MOS FET INDUSTRIAL USE ORDERING INFORMATION PART NUMBER 2SK3055 PACKAGE Iso.
This product is N-Channel MOS Field Effect Transistor designed for high current switching applications. Low On-State Resistance RD.

2SK3055 Features

* Low On-State Resistance RDS(on)1 = 34 mΩ MAX. (VGS = 10 V, ID = 15 A) RDS(on)2 = 50 mΩ MAX. (VGS = 4.0 V, ID = 15 A)
* Low Ciss : Ciss = 920 pF TYP.
* Built-in Gate Protection Diode
* Isolated TO-220 package ABSOLUTE MAXIMUM RATINGS (TA = 25 °C) Drain to Source Vol

📥 Download Datasheet

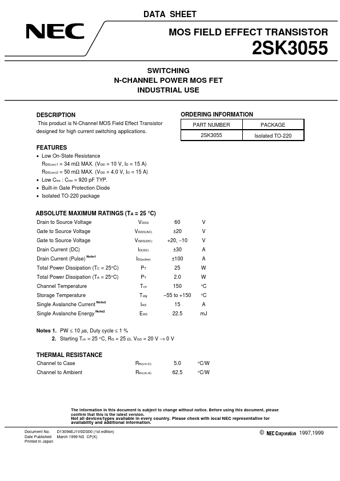

Preview of 2SK3055 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
2SK3055
Manufacturer
NEC
File Size
63.92 KB
Datasheet
2SK3055_NEC.pdf
Description
N-Channel MOSFET
