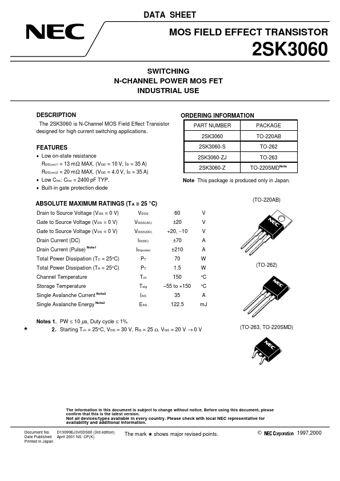

2SK3060 Datasheet, Fet, NEC

2SK3060 Features

• Fet
• Low on-state resistance RDS(on)1 = 13 mΩ MAX. (VGS = 10 V, ID = 35 A) RDS(on)2 = 20 mΩ MAX. (VGS = 4.0 V, ID = 35 A)
• Low Ciss: Ciss = 2400 pF TYP.
• Built-in

PDF File Details

Part number:

2SK3060

Manufacturer:

NEC

File Size:

82.82kb

Download:

📄 Datasheet

Description:

N-channel power mos fet. The 2SK3060 is N-Channel MOS Field Effect Transistor designed for high current switching applications. FEATURES

Low on-stat

2SK3060 Application

• Applications FEATURES
• Low on-state resistance RDS(on)1 = 13 mΩ MAX. (VGS = 10 V, ID = 35 A) RDS(on)2 = 20 mΩ MAX. (VGS = 4.0 V, ID = 35 A
