2SK3061 - N-Channel MOSFET

Product Overview

NEC

📥 Download Datasheet

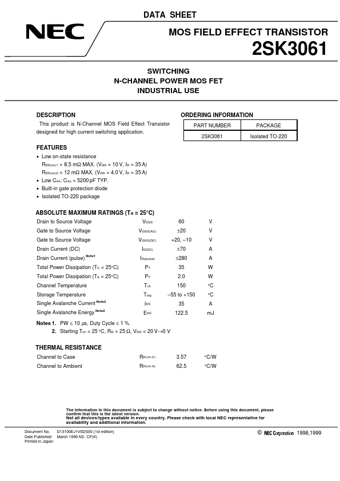

2SK3061 N-Channel MOSFET by NEC - Datasheet Preview — Datasheet preview – 2SK3061

Datasheet Details

Part number	2SK3061
Manufacturer	NEC
File Size	64.95 KB
Description	N-Channel MOSFET
Datasheet	2SK3061 Datasheet
Additional preview pages of the 2SK3061 datasheet.

Product details

Description

This product is N-Channel MOS Field Effect Transistor designed for high current switching application.

Features

Low on-state resistance RDS(on)1 = 8.5 mΩ MAX. (VGS = 10 V, ID = 35 A) RDS(on)2 = 12 mΩ MAX. (VGS = 4.0 V, ID = 35 A).
Low Ciss: Ciss = 5200 pF TYP.
Built-in gate protection diode.
Isolated TO-220 package.
