2SK3067 Datasheet - Toshiba Semiconductor

2SK3067 N-Channel MOSFET

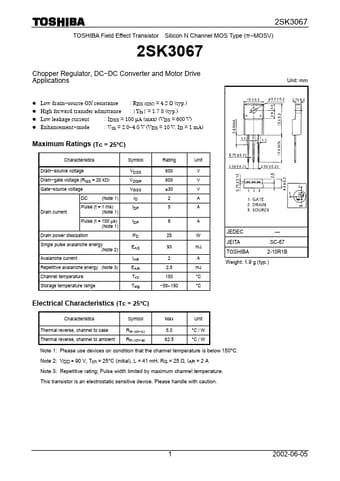

2SK3067 TOSHIBA Field Effect Transistor Silicon N Channel MOS Type (π MOSV) 2SK3067 Chopper Regulator, DC DC Converter and Motor Drive Applications l Low drain source ON resistance l High forward transfer admittance l Low leakage current l Enhancement mode : RDS (ON) = 4.2 Ω (typ.) : |Yfs| = 1.7 S (typ.) Unit: mm : IDSS = 100 µA (max) (VDS = 600 V) : Vth = 2.0~4.0 V (VDS = 10 V, ID = 1 mA) Maximum Ratings (Tc = 25°C) Characteristics Drain source voltage.

2SK3067_ToshibaSemiconductor.pdf
