2SK3068 Datasheet - Toshiba Semiconductor

2SK3068 N-Channel MOSFET

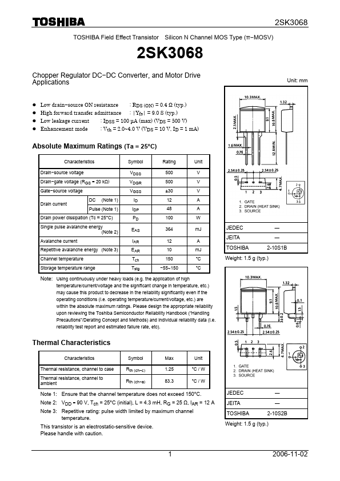

2SK3068 TOSHIBA Field Effect Transistor Silicon N Channel MOS Type (π MOSV) 2SK3068 Chopper Regulator DC DC Converter, and Motor Drive Applications Unit: mm z Low drain source ON resistance : RDS (ON) = 0.4 Ω (typ.) z High forward transfer admittance : |Yfs| = 9.0 S (typ.) z Low leakage current : IDSS = 100 μA (max) (VDS = 500 V) z Enhancement mode : Vth = 2.0~4.0 V (VDS = 10 V, ID = 1 mA) Absolute Maximum Ratings (Ta = 25°C) Characteristics Symbol Rating Unit.

2SK3068_ToshibaSemiconductor.pdf
