2SK3062 - N-Channel MOSFET

2SK3062 Description

DATA SHEET MOS FIELD EFFECT TRANSISTOR 2SK3062 SWITCHING N-CHANNEL POWER MOS FET INDUSTRIAL USE ORDERING INFORMATION PART NUMBER 2SK3062 2SK3062-S 2.
This product is N-Channel MOS Field Effect Transistor designed for high current switching applications. Low on-state resistance RD.

2SK3062 Features

* Low on-state resistance RDS(on)1 = 8.5 mΩ MAX. (VGS = 10 V, ID = 35 A) RDS(on)2 = 12 mΩ MAX. (VGS = 4.0 V, ID = 35 A)
* Low Ciss: Ciss = 5200 pF TYP.
* Built-in gate protection diode ABSOLUTE MAXIMUM RATINGS (TA = 25 °C) Drain to Source Voltage (VGS = 0 V) Gate to Source V

📥 Download Datasheet

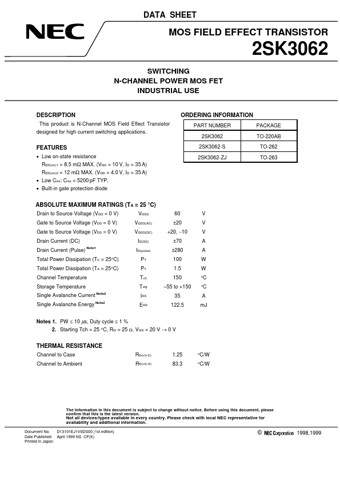

Preview of 2SK3062 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
2SK3062
Manufacturer
NEC
File Size
69.94 KB
Datasheet
2SK3062_NEC.pdf
Description
N-Channel MOSFET
