2SK302 - Silicon N Channel MOS Type Field Effect Transistor

2SK302 Description

TOSHIBA Field Effect Transistor Silicon N Channel MOS Type 2SK302 2SK302 FM Tuner, VHF RF Amplifier Applications Unit: mm * Low reverse tr.

2SK302 Applications

* Unit: mm
* Low reverse transfer capacitance: Crss = 0.035 pF (typ. )
* Low noise figure: NF = 1.7dB (typ. )
* High power gain: Gps = 28dB (typ. )
* Recommend operation voltage: 5~15 V Absolute Maximum Ratings (Ta = 25°C) Characteristics Symbol Rating Unit Drain-s

📥 Download Datasheet

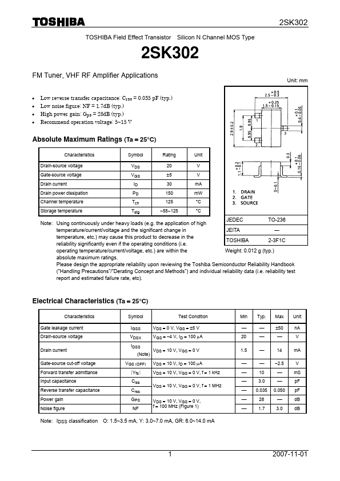

Preview of 2SK302 PDF
datasheet Preview Page 2 datasheet Preview Page 3
