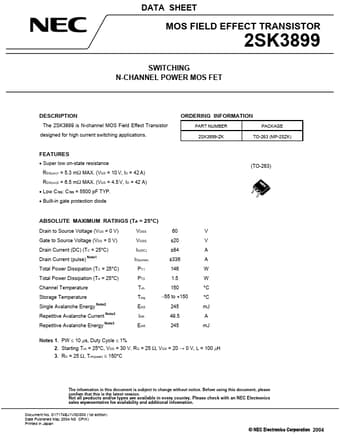

Part number:
2SK3899
Manufacturer:
NEC
File Size:
154.71 KB
Description:
Switching n-channel power mosfet.
* Super low on-state resistance RDS(on)1 = 5.3 mΩ MAX. (VGS = 10 V, ID = 42 A) RDS(on)2 = 6.5 mΩ MAX. (VGS = 4.5 V, ID = 42 A)
* Low C iss: C iss = 5500 pF TYP.
* Built-in gate protection diode (TO-263) ABSOLUTE MAXIMUM RATINGS (TA = 25°C) Drain to Source Voltage (VGS = 0 V)
2SK3899
NEC
154.71 KB
Switching n-channel power mosfet.
