2SK3813 Datasheet, Mosfet, NEC

2SK3813 Features

  • Mosfet
  • Super low on-state resistance RDS(on)1 = 5.3 mΩ MAX. (VGS = 10 V, ID = 30 A) RDS(on)2 = 7.1 mΩ MAX. (VGS = 4.5 V, ID = 30 A)
  • Low C iss: C iss = 5500 pF TYP. (TO-251)

PDF File Details

Part number:

2SK3813

Manufacturer:

NEC

File Size:

184.59kb

Download:

📄 Datasheet

Description:

Switching n-channel power mosfet. The 2SK3813 is N-channel MOS Field Effect Transistor designed for high current switching applications. ORDERING INFORMATION PART NUM

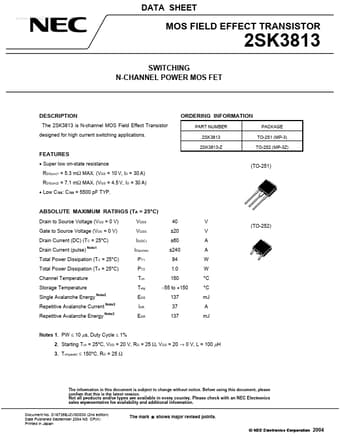

Datasheet Preview: 2SK3813 📥 Download PDF (184.59kb)
Page 2 of 2SK3813 Page 3 of 2SK3813

2SK3813 Application

  • Applications ORDERING INFORMATION PART NUMBER 2SK3813 2SK3813-Z PACKAGE TO-251 (MP-3) TO-252 (MP-3Z) FEATURES
  • Super low on-state resist
