2SK3812-ZP Datasheet, Transistor, Inchange Semiconductor

2SK3812-ZP Features

• Transistor
• Drain Current : ID= 110A@ TC=25℃
• Drain Source Voltage : VDSS= 60V(Min)
• Static Drain-Source On-Resistance : RDS(on) = 1.8mΩ(Max) @ VGS= 10V
• 100% avala

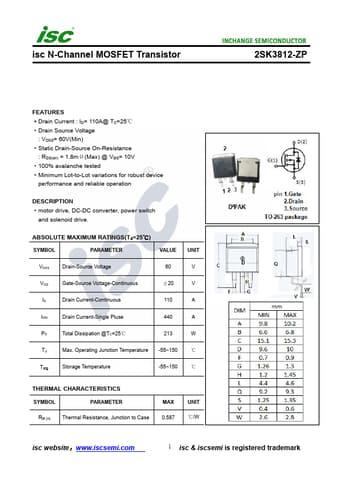

PDF File Details

Part number:

2SK3812-ZP

Manufacturer:

Inchange Semiconductor

File Size:

357.39kb

Download:

📄 Datasheet

Description:

N-channel mosfet transistor.

motor drive, DC-DC converter, power switch and solenoid drive. ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE

2SK3812-ZP Application

• Applications of our products. ISC products are intended for usage in general electronic equipment. The products are not designed for use in equipmen
