2SK3803 MOSFET

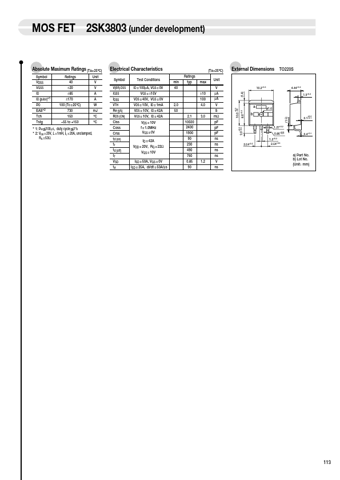

MOS FET 2SK3803 (under development) Absolute Maximum Ratings (Ta=25ºC) Symbol Ratings Unit VDSS 40 V VGSS ±20 V ID ±85 A ID (pulse) 1 ±170 A PD 100 (Tc=25ºC) W EAS 2 730 mJ Tch 150 ºC Tstg 55 to +150 ºC 1: PW 100µs, duty cycle 1% 2: VDD = 20V, L = 1mH, IL = 20A, unclamped, RG = 50Ω Electrical Characteristics Symbol Test Conditions V(BR) DSS IGSS IDSS VTH Re (yfs) RDS (ON) Ciss Coss Crss td (on) tr td (off) tf VSD trr ID = 100µA, VGS .
