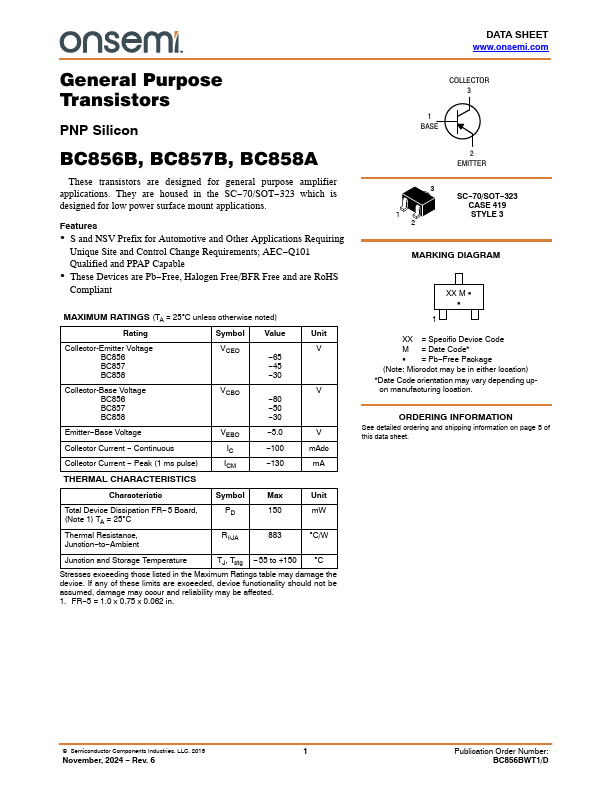

BC857B
BC857B is PNP Silicon Transistor manufactured by onsemi.
- Part of the BC856B comparator family.
- Part of the BC856B comparator family.
Features
- S and NSV Prefix for Automotive and Other Applications Requiring
Unique Site and Control Change Requirements; AEC- Q101 Qualified and PPAP Capable
- These Devices are Pb- Free, Halogen Free/BFR Free and are Ro HS pliant
MAXIMUM RATINGS (TA = 25C unless otherwise noted)
Rating
Symbol Value
Unit
Collector-Emitter Voltage BC856 BC857 BC858
VCEO
- 65
- 45
- 30
Collector-Base Voltage BC856 BC857 BC858
VCBO
- 80
- 50
- 30
Emitter- Base Voltage Collector Current
- Continuous Collector Current
- Peak (1 ms pulse) THERMAL CHARACTERISTICS
VEBO IC ICM
- 5.0
- 100
- 130
V m Adc m A
Characteristic
Symbol
Max
Unit
Total Device Dissipation FR- 5 Board, (Note 1) TA = 25C
Thermal Resistance, Junction- to- Ambient
PD Rq JA
150 m W
C/W
Junction and Storage Temperature
TJ,...
