BD234 - Plastic Medium Power Bipolar Transistors

This page provides the datasheet information for the BD234, a member of the BD237 Plastic Medium Power Bipolar Transistors family.

Features

DC Current Gain.
hFE = 40 (Min) @ IC = 0.15 Adc.
Epoxy Meets UL 94 V0 @ 0.125 in.
ESD Ratings: Human Body Model, 3B; >8000 V Machine Model, C; >400 V.
Pb.
Free Packages are Available.
ÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎ.

onsemi

📥 Download Datasheet

Datasheet Details

Part number	BD234
Manufacturer	onsemi
File Size	59.33 KB
Description	Plastic Medium Power Bipolar Transistors
Datasheet	BD234 Datasheet

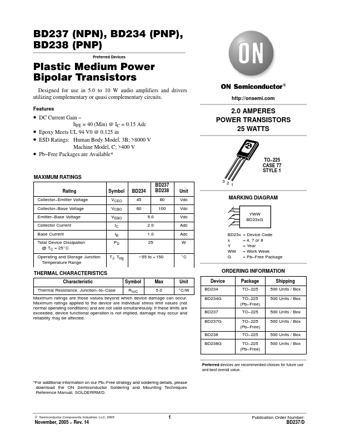

Additional preview pages of the BD234 datasheet.
