BD438G - Plastic Medium Power Silicon PNP Transistor

This page provides the datasheet information for the BD438G, a member of the BD442G Plastic Medium Power Silicon PNP Transistor family.

Datasheet Summary

Features

These Devices are Pb.
Free and are RoHS Compliant.

ON Semiconductor

📥 Download Datasheet

Datasheet Details

Part number	BD438G
Manufacturer	ON Semiconductor
File Size	70.29 KB
Description	Plastic Medium Power Silicon PNP Transistor
Datasheet	BD438G Datasheet
Additional preview pages of the BD438G datasheet.

📁 Similar Datasheet

BD438 - Plastic Medium Power Silicon PNP Transistor (Motorola Inc)
BD438 - COMPLEMENTARY SILICON POWER TRANSISTORS (STMicroelectronics)
BD438 - PNP Epitaxial Silicon Transistor (Fairchild Semiconductor)
BD438 - POWER TRANSISTORS (TRANSYS Electronics)
BD438 - PNP Silicon Power Transistors (Micro Commercial Components)
BD438 - Silicon PNP Power Transistors (Comset Semiconductors)
BD438 - Silicon PNP Power Transistors (SavantIC)
BD438 - Plastic Encapsulate Transistors (SeCoS)
BD438 - EPITAXIAL SILICON POWER TRANSISTORS (CDIL)
BD438 - Silicon PNP transistor (BLUE ROCKET ELECTRONICS)

Other Datasheets by ON Semiconductor

BD438 - PNP Transistor
BD435 - Plastic Medium Power Silicon NPN Transistor
BD435G - Plastic Medium-Power Silicon NPN Transistors
BD436 - Plastic Medium Power Silicon PNP Transistor
BD436G - Plastic Medium Power Silicon PNP Transistor
BD437 - Plastic Medium Power Silicon NPN Transistor
BD437G - Plastic Medium-Power Silicon NPN Transistors
BD439 - Plastic Medium Power Silicon NPN Transistor

Full PDF Text Transcription

Click to expand full text

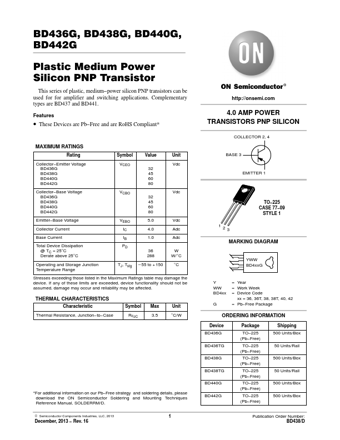

BD436G, BD438G, BD440G, BD442G Plastic Medium Power Silicon PNP Transistor This series of plastic, medium−power silicon PNP transistors can be used for for amplifier and switching applications. Complementary types are BD437 and BD441. Features • These Devices are Pb−Free and are RoHS Compliant* MAXIMUM RATINGS Rating Symbol Value Unit Collector−Emitter Voltage BD436G BD438G BD440G BD442G VCEO 32 45 60 80 Vdc Collector−Base Voltage BD436G BD438G BD440G BD442G VCBO 32 45 60 80 Vdc Emitter−Base Voltage Collector Current Base Current Total Device Dissipation @ TC = 25°C Derate above 25°C VEBO 5.0 Vdc IC 4.0 Adc IB 1.
