CAT24C256 - 256kb I2C CMOS Serial EEPROM

Product Overview

ON Semiconductor

Part number	CAT24C256
Manufacturer	ON Semiconductor
File Size	323.24 KB
Description	256kb I2C CMOS Serial EEPROM
Datasheet	CAT24C256 Datasheet

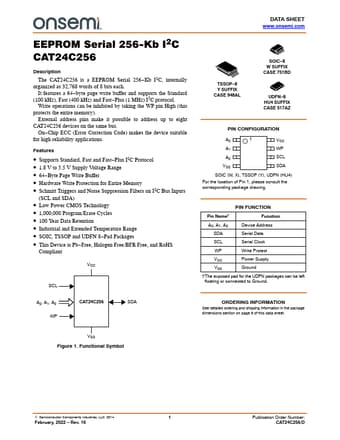

Additional preview pages of the CAT24C256 datasheet.

The CAT24C256 is a EEPROM Serial 256 Kb I2C, internally organized as 32,768 words of 8 bits each.It

a 64.
byte page write buffer and supports the Standard (100 kHz), Fast (400 kHz) and Fast.
Plus (1 MHz) I2C protocol. Write operations can be inhibited by taking the WP pin High (this protects the entire memory). External address pins make it possible to address up to eight CAT24C256 devices on the same bus. On.
Chip ECC (Error Correction Code) makes the device suitable for high reliability.
