CAT5138, CAT5136 - Digital Potentiometers

ON Semiconductor

Datasheet Details

Part number	CAT5138, CAT5136
Manufacturer	ON Semiconductor ↗
File Size	243.76 KB
Description	Digital Potentiometers
Datasheet	CAT5136_ONSemiconductor.pdf
Note	This datasheet PDF includes multiple part numbers: CAT5138, CAT5136. Please refer to the document for exact specifications by model.

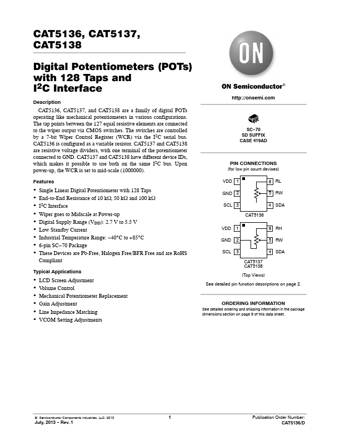

CAT5136, CAT5137, and CAT5138 are a family of digital POTs operating like mechanical potentiometers in various configurations.

Single Linear Digital Potentiometer with 128 Taps.
End-to-End Resistance of 10 kW, 50 kW and 100 kW.
I2C Interface.
Wiper goes to Midscale at Power-up.
Digital Supply Range (VDD): 2.7 V to 5.5 V.
Low Standby Current.
Industrial Temperature Range:.
40C to +85C.
6-pin SC.
70 Package.
These Devices are Pb-Free, Halogen Free/BFR Free and are RoHS Compliant Typical.
