CAT5221

Dual Digital Potentiometer

Image Manufacturer B2B MPN Description Distributor Stock Quantity Price Buy Now
Distributor Winchester Interconnect FMXCAT52218K12 Ethernet Cables / Networking Cables CAT5E + 22AWG 18C; WB; Kevlar; PU; Xtrem PRC PER FT Mouser Electronics 1075 1 units
$12.36

CAT5221 Datasheet (195.14 KB)

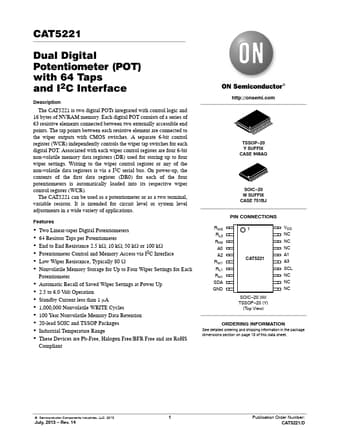

Preview of CAT5221 PDF Datasheet

Datasheet Details

Part number:

CAT5221

Manufacturer:

ON Semiconductor ↗

File Size:

195.14 KB

Description:

Dual digital potentiometer

CAT5221 General Description

The CAT5221 is two digital POTs integrated with control logic and 16 bytes of NVRAM memory. Each digital POT consists of a series of 63 resistive elements connected between two externally accessible end points. The tap points between each resistive element are connected to the wiper outputs with CMO.
