CAT521 Datasheet - Catalyst Semiconductor

CAT521 8-Bit Digital POT With Independent Reference Inputs

The CAT521 is a dual 8-Bit Memory DAC designed as an electronic replacement for mechanical potentiometers and trim pots. Intended for final calibration of products such as camcorders, fax machines and cellular telephones on automated high volume production lines and systems capable of self calibrati.

CAT521 Features

* s Buffered Outputs s Output settings retained without power s Output range includes both supply rails s Programming voltage generated on-chip s Serial µP interface s Single supply operation: 2.7V-5.5V APPLICATIONS s Automated product calibration. s Remote control adjustment of equipment s Offset, g

CAT521_CatalystSemiconductor.pdf

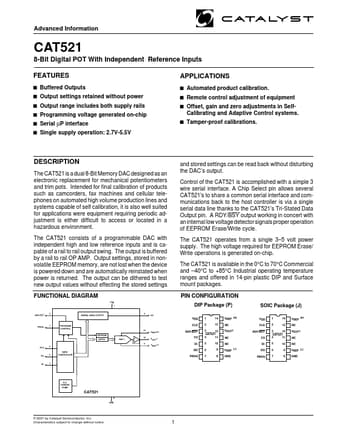

Preview of CAT521 PDF
CAT521 Datasheet Preview Page 2 CAT521 Datasheet Preview Page 3

Datasheet Details

Part number:

CAT521

Manufacturer:

Catalyst Semiconductor

File Size:

56.19 KB

Description:

8-bit digital pot with independent reference inputs.
