CAV24C02 - I2C CMOS Serial EEPROM

ON Semiconductor

📥 Download Datasheet

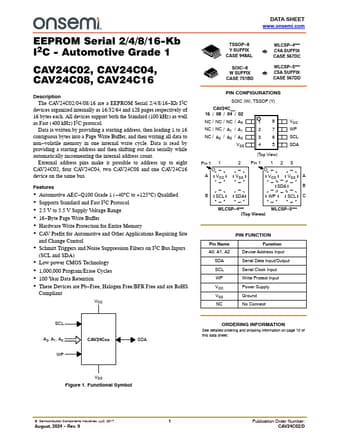

CAV24C02 Datasheet Preview — Preview of CAV24C02 PDF

Datasheet Details

Part number	CAV24C02
Manufacturer	ON Semiconductor
File Size	384.34 KB
Description	I2C CMOS Serial EEPROM
Datasheet	CAV24C02_ONSemiconductor.pdf

CAV24C02 Product details

Description

The CAV24C02/04/08/16 are a EEPROM Serial 2/4/8/16 Kb I2C devices organized internally as 16/32/64 and 128 pages respectively of 16 bytes each.All devices support both the Standard (100 kHz) as well as Fast (400 kHz) I2C protocol.Data is written by providing a starting address, then loading 1 to 16 contiguous bytes into a Page Write Buffer, and then writing all data to non volatile memory in one internal write cycle.

Features

Automotive AEC.
Q100 Grade 1 (.
40C to +125C) Qualified.
Supports Standard and Fast I2C Protocol.
2.5 V to 5.5 V Supply Voltage Range.
16.
Byte Page Write Buffer.
Hardware Write Protection for Entire Memory.
CAV Prefix for Automotive and Other.
