CAV24C04 Datasheet, Eeprom, ON Semiconductor

CAV24C04 Features

  • Eeprom
  • Automotive AEC
  • Q100 Grade 1 (
  • 40C to +125C) Qualified
  • Supports Standard and Fast I2C Protocol
  • 2.5 V to 5.5 V Supply Voltage Range

PDF File Details

Part number:

CAV24C04

Manufacturer:

ON Semiconductor ↗

File Size:

384.34kb

Download:

📄 Datasheet

Description:

I2c cmos serial eeprom. The CAV24C02/04/08/16 are a EEPROM Serial 2/4/8/16Kb I2C devices organized internally as 16/32/64 and 128 pages respectively

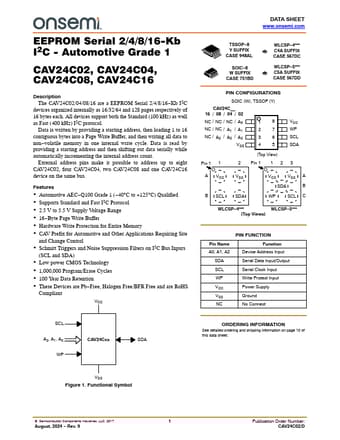

Datasheet Preview: CAV24C04 📥 Download PDF (384.34kb)
Page 2 of CAV24C04 Page 3 of CAV24C04

CAV24C04 Application

  • Applications Requiring Site and Change Control
  • Schmitt Triggers and Noise Suppression Filters on I2C Bus Inputs (SCL and SDA)
  • Lo
