CAV24C08, CAV24C02 I2C CMOS Serial EEPROM

CAV24C08 Description

EEPROM Serial 2/4/8/16-Kb I2C - Automotive Grade 1 CAV24C02, CAV24C04, CAV24C08, CAV24C16 .
The CAV24C02/04/08/16 are a EEPROM Serial 2/4/8/16. Kb I2C devices organized internally as 16/32/64 and 128 pages respectively of 16 bytes each.

CAV24C08 Features

* Automotive AEC
* Q100 Grade 1 (
* 40C to +125C) Qualified
* Supports Standard and Fast I2C Protocol
* 2.5 V to 5.5 V Supply Voltage Range
* 16
* Byte Page Write Buffer
* Hardware Write Protection for Entire Memory
* CAV Prefix for Automotive and Other Ap

CAV24C08 Applications

* Requiring Site and Change Control
* Schmitt Triggers and Noise Suppression Filters on I2C Bus Inputs (SCL and SDA)
* Low power CMOS Technology
* 1,000,000 Program/Erase Cycles
* 100 Year Data Retention
* These Devices are Pb
* Free, Halogen Free/BFR Free and are RoHS Compli

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: CAV24C08, CAV24C02. Please refer to the document for exact specifications by model.

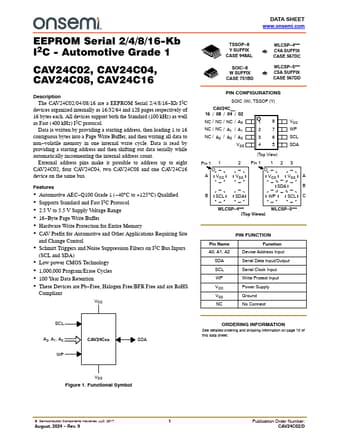

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
CAV24C08, CAV24C02
Manufacturer
ON Semiconductor ↗
File Size
384.34 KB
Datasheet
CAV24C02_ONSemiconductor.pdf
Description
I2C CMOS Serial EEPROM
Note
This datasheet PDF includes multiple part numbers: CAV24C08, CAV24C02.
Please refer to the document for exact specifications by model.
