CS51031 Datasheet - ON Semiconductor

CS51031 - Fast P-Ch FET Buck Controller

Package Pin Number 1 2 3 4 5 6 7 8 Pin Symbol VGATE PGND COSC GND VFB VCC CS VC Function Driver pin to gate of external P *Ch FET.

Output power stage ground connection.

Oscillator frequency programming capacitor.

Logic ground.

Feedback voltage input.

Logic supply voltage.

Soft *Start a

www.DataSheet4U.com CS51031 Fast P Ch FET Buck Controller The CS51031 is a switching controller for use in DC DC converters.

It can be used in the buck topology with a minimum number of external components.

The CS51031 consists of a VCC monitor for controlling the state of the device, 1.0 A power driver for controlling the gate of a discrete P Channel transistor, fixed frequency oscillator, short circuit protection timer, programmable Soft Start, precision refere

CS51031 Features

* http://onsemi.com 8 1 SOIC

* 8 D SUFFIX CASE 751

* 1.0 A Totem Pole Output Driver High Speed Oscillator (700 kHz max) No Stability Compensation Required Lossless Short Circuit Protection VCC Monitor 2.0

CS51031_ONSemiconductor.pdf

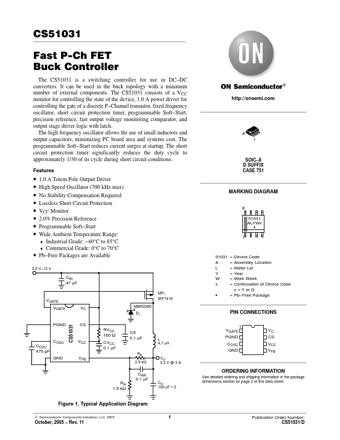

Preview of CS51031 PDF
CS51031 Datasheet Preview Page 2 CS51031 Datasheet Preview Page 3

Datasheet Details

Part number:

CS51031

Manufacturer:

ON Semiconductor ↗

File Size:

121.49 KB

Description:

Fast p-ch fet buck controller.
