CS5203A-5 3.0 A Adjustable/ and Fixed 1.5 V/ 3.3 V and 5.0 V Linear Regulators

Package Pin Number CS5203A *1 D2PAK *3 1 2 3 N/A TO *220 *3 1 2 3 N/A CS5203A *2, *3, *5 D2PAK *3 N/A 2 3 1 TO *220 *3 N/A 2 3 1 Pin Symbol Adj VOUT VIN GND Function Adjust pin (low side of the internal reference). Regulated out.

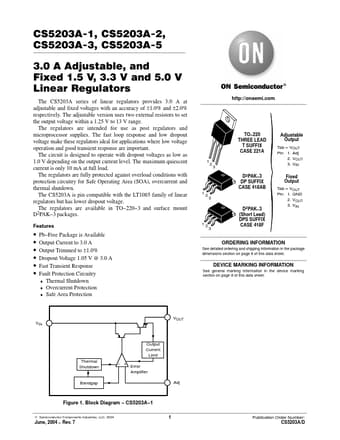

CS5203A 1, CS5203A 2, CS5203A 3, CS5203A 5 3.0 A Adjustable, and Fixed 1.5 V, 3.3 V and 5.0 V Linear Regulators The CS5203A series of linear regulators provides 3.0 A at adjustable and fixed voltages with an accuracy of ±1.0% and ±2.0% respectively. The adjustable version uses two external resistors to set the output voltage within a 1.25 V to 13 V range. The regulators are intended for use as post regulators and microprocessor supplies. The fast loop response and.

CS5203A-5 Features

* http://onsemi.com TO

* 220 THREE LEAD T SUFFIX CASE 221A 1 2 Adjustable Output Tab = VOUT Pin 1. Adj 2. VOUT 3. VIN Fixed Output Tab = VOUT Pin 1. GND 2. VOUT 3. VIN 3 D2PAK

* 3 DP SUFFIX CASE 418AB 12 3 D2PAK

* 3 (Short Lead) DPS SUFFIX CASE 418F 12
