CS52015-1 - 1.5A Adjustable Linear Regulator

Description

The CS52015-1 linear regulator provides 1.5A with an accuracy of ±1%.

The device uses two external resistors to set the output voltage within a 1.25V to 5.5V range.

The regulator is intended for use as a post regulator and microprocessor supply.

Features

  • s Output Current to 1.5A s Output Accuracy to ±1% Over Temperature s Dropout Voltage (typical) 1.05V @ 1.5A s Fast Transient Response s Fault Protection Current Limit Thermal Shutdown.

📥 Download Datasheet

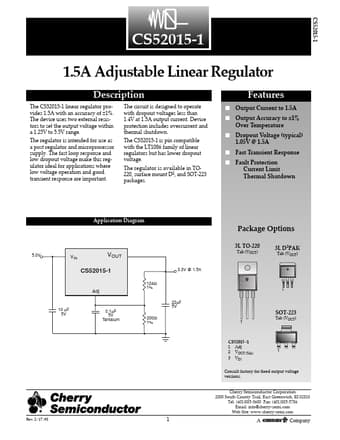

Datasheet preview – CS52015-1

Datasheet Details

Part number CS52015-1
Manufacturer Cherry Semiconductor Corporation
File Size 173.06 KB
Description 1.5A Adjustable Linear Regulator
Datasheet download datasheet CS52015-1 Datasheet
Additional preview pages of the CS52015-1 datasheet.

📁 Similar Datasheet

  • CS52015-1 - Linear Regulator (ON Semiconductor)
  • CS52015-3 - Linear Regulator (ON Semiconductor)
  • CS5201-1 - 1.0 A Adjustable Linear Regulator (ON Semiconductor)
  • CS5201-3 - Linear Regulator (ON Semiconductor)
  • CS5202 - CS5202 CMOS (ETC)
  • CS5203-1 - 3.0 A Adjustable Linear Regulator (ON Semiconductor)
  • CS5203-3 - Linear Regulator (ON Semiconductor)
  • CS5203A-1 - 3.0 A Adjustable/ and Fixed 1.5 V/ 3.3 V and 5.0 V Linear Regulators (ON Semiconductor)
  • CS5203A-2 - 3.0 A Adjustable/ and Fixed 1.5 V/ 3.3 V and 5.0 V Linear Regulators (ON Semiconductor)
  • CS5203A-3 - 3.0 A Adjustable/ and Fixed 1.5 V/ 3.3 V and 5.0 V Linear Regulators (ON Semiconductor)
Other Datasheets by Cherry Semiconductor Corporation
  • CS52015-3 - 1.5A/ 3.3V Fixed Linear Regulator
  • CS5201-1 - 1A Adjustable Linear Regulator
  • CS5201-3 - 1A/ 3.3V Fixed Linear Regulator
  • CS5203-1 - 3A Adjustable Linear Regulator
  • CS5203-3 - 3A/ 3.3V Fixed Linear Regulator
  • CS5205-1 - 5A Adjustable/ and 3.3V and 5V Fixed Linear Regulators
  • CS5205-3 - 5A Adjustable/ and 3.3V and 5V Fixed Linear Regulators
  • CS5205-5 - 5A Adjustable/ and 3.3V and 5V Fixed Linear Regulators

Full PDF Text Transcription

Click to expand full text
CS52015-1 CS52015-1 1.5A Adjustable Linear Regulator Description The CS52015-1 linear regulator provides 1.5A with an accuracy of ±1%. The device uses two external resistors to set the output voltage within a 1.25V to 5.5V range. The regulator is intended for use as a post regulator and microprocessor supply. The fast loop response and low dropout voltage make this regulator ideal for applications where low voltage operation and good transient response are important. The circuit is designed to operate with dropout voltages less than 1.4V at 1.5A output current. Device protection includes overcurrent and thermal shutdown. The CS52015-1 is pin compatible with the LT1086 family of linear regulators but has lower dropout voltage.
