CS5201-3 - 1A/ 3.3V Fixed Linear Regulator

Description

The CS5201-3 linear regulator provides a 1A@ 3.3V reference at 1A with an output voltage accuracy of ±1.5%.

This regulator is intended for use as a post regulator and microprocessor supply.

Features

  • s Output Current to 1A s Output Accuracy to ±1.5% Over Temperature s Dropout Voltage (typical) 1.0V @ 1A s Fast Transient Response s Fault Protection Current Limit Thermal Shutdown Package Options.

📥 Download Datasheet

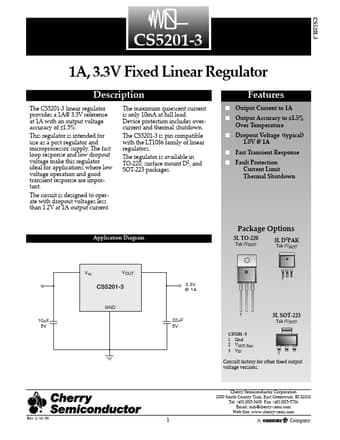

Datasheet preview – CS5201-3

Datasheet Details

Part number CS5201-3
Manufacturer Cherry Semiconductor Corporation
File Size 158.38 KB
Description 1A/ 3.3V Fixed Linear Regulator
Datasheet download datasheet CS5201-3 Datasheet
Additional preview pages of the CS5201-3 datasheet.

📁 Similar Datasheet

  • CS5201-3 - Linear Regulator (ON Semiconductor)
  • CS5201-1 - 1.0 A Adjustable Linear Regulator (ON Semiconductor)
  • CS52015-1 - Linear Regulator (ON Semiconductor)
  • CS52015-3 - Linear Regulator (ON Semiconductor)
  • CS5202 - CS5202 CMOS (ETC)
  • CS5203-1 - 3.0 A Adjustable Linear Regulator (ON Semiconductor)
  • CS5203-3 - Linear Regulator (ON Semiconductor)
  • CS5203A-1 - 3.0 A Adjustable/ and Fixed 1.5 V/ 3.3 V and 5.0 V Linear Regulators (ON Semiconductor)
  • CS5203A-2 - 3.0 A Adjustable/ and Fixed 1.5 V/ 3.3 V and 5.0 V Linear Regulators (ON Semiconductor)
  • CS5203A-3 - 3.0 A Adjustable/ and Fixed 1.5 V/ 3.3 V and 5.0 V Linear Regulators (ON Semiconductor)
Other Datasheets by Cherry Semiconductor Corporation
  • CS5201-1 - 1A Adjustable Linear Regulator
  • CS52015-1 - 1.5A Adjustable Linear Regulator
  • CS52015-3 - 1.5A/ 3.3V Fixed Linear Regulator
  • CS5203-1 - 3A Adjustable Linear Regulator
  • CS5203-3 - 3A/ 3.3V Fixed Linear Regulator
  • CS5205-1 - 5A Adjustable/ and 3.3V and 5V Fixed Linear Regulators
  • CS5205-3 - 5A Adjustable/ and 3.3V and 5V Fixed Linear Regulators
  • CS5205-5 - 5A Adjustable/ and 3.3V and 5V Fixed Linear Regulators

Full PDF Text Transcription

Click to expand full text
CS5201-3 CS5201-3 1A, 3.3V Fixed Linear Regulator Description The CS5201-3 linear regulator provides a 1A@ 3.3V reference at 1A with an output voltage accuracy of ±1.5%. This regulator is intended for use as a post regulator and microprocessor supply. The fast loop response and low dropout voltage make this regulator ideal for applications where low voltage operation and good transient response are important. The circuit is designed to operate with dropout voltages less than 1.2V at 1A output current. The maximum quiescent current is only 10mA at full load. Device protection includes overcurrent and thermal shutdown. The CS5201-3 is pin compatible with the LT1086 family of linear regulators. The regulator is available in TO-220, surface mount D2, and SOT-223 packages.
