CS8120

Linear Regulator

CS8120 Features

* http://onsemi.com TO

* 220

* 5 T SUFFIX CASE 314D 1 5 TO

* 220

* 5 TVA SUFFIX CASE 314K 1 TO

* 220

* 5 THA SUFFIX CASE 314A 1 5 D2PAK

* 5 DP SUFFIX CASE 936AC 1 5 DIP

* 8 N SUFFIX CASE 626 8 1 SO

* 14 D SUFFIX CASE 751A 1

CS8120 General Description

PACKAGE LEAD # TO

*220

*5 1 2 3 4 DIP

*8 2 4 8 6 SO

*14 1 5 13 10 D2PAK

*5 1 2 3 4 LEAD SYMBOL VIN ENABLE GND RESET FUNCTION Supply voltage to IC, usually direct from the battery. CMOS compatible logical input. VOUT is disabled i.e. placed in a high impedance state.

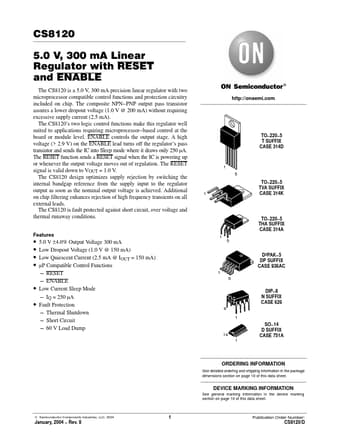

CS8120 Datasheet (147.88 KB)

Preview of CS8120 PDF

Datasheet Details

Part number:

CS8120

Manufacturer:

ON Semiconductor ↗

File Size:

147.88 KB

Description:

Linear regulator.
www.DataSheet4U.com CS8120 5.0 V, 300 mA Linear Regulator with RESET and ENABLE The CS8120 is a 5.0 V, 300 mA precision linear regulator with two mic.
