CS8151 Datasheet - ON Semiconductor

CS8151 - 100mA Low Dropout Linear Regulator

CS8151 5.0 V, 100 mA Low Dropout Linear Regulator with Watchdog, RESET, and Wake Up The CS8151 is a precision 5.0 V, 100 mA micro power voltage regulator with very low quiescent current (400 mA typical at 200 mA load).

The 5.0 V output is accurate within ±2% and supplies 100 mA of load current with a typical dropout voltage of 400 mV.

Microprocessor control logic includes Watchdog, Wake Up and RESET.

This unique combination of low quiescent current and full microprocessor control makes

CS8151 Features

* 5.0 V ± 2%/100 mA Output Voltage

* Micropower Compatible Control Functions

* Wake Up

* Watchdog

* RESET

* Low Dropout Voltage: 400 mV @ 100 mA

* Low Sleep Mode Quiescent Current (400 mA Typ)

* Protection Features

* Thermal Shu

CS8151-ONSemiconductor.pdf

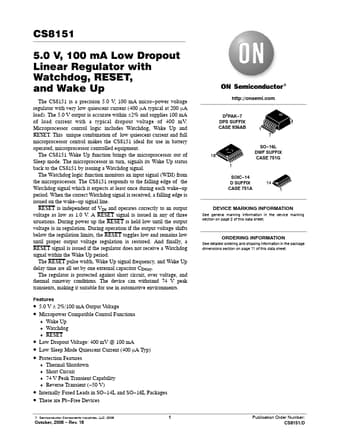

Preview of CS8151 PDF
CS8151 Datasheet Preview Page 2 CS8151 Datasheet Preview Page 3

Datasheet Details

Part number:

CS8151

Manufacturer:

ON Semiconductor ↗

File Size:

355.94 KB

Description:

100ma low dropout linear regulator.
