CS8122

Low Dropout Linear Regulator

CS8122 Features

* a tighter tolerance on its output voltage (2.0% vs. 4.0%). The CS8122 is packaged in a 5 lead TO

* 220 with copper tab. The copper tab can be connected to a heat sink if necessary. Features http://onsemi.com TO

* 220 FIVE LEAD T SUFFIX CASE 314D 1 5 TO

* 220 FIVE LEAD TVA SUFFIX C

CS8122 General Description

PACKAGE LEAD # TO

*220 5 LEAD 1 2 3 4 5 LEAD SYMBOL VIN VOUT GND Delay RESET FUNCTION Unregulated supply voltage to IC. Regulated 5.0 V output. Ground Connection. Timing capacitor for RESET function. CMOS/TTL compatible output lead. RESET goes low whenever VOUT drops below 6.0% of it’s regula.

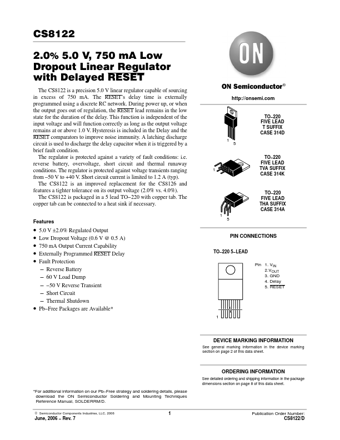

CS8122 Datasheet (126.26 KB)

Preview of CS8122 PDF

Datasheet Details

Part number:

CS8122

Manufacturer:

ON Semiconductor ↗

File Size:

126.26 KB

Description:

Low dropout linear regulator.
www.DataSheet4U.com CS8122 2.0% 5.0 V, 750 mA Low Dropout Linear Regulator with Delayed RESET The CS8122 is a precision 5.0 V linear regulator capabl.
