DTC123TE - Digital Transistors

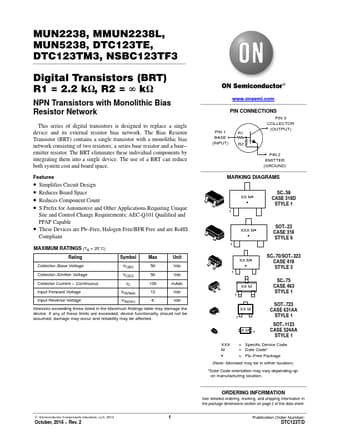

MUN2238, MMUN2238L, MUN5238, DTC123TE, DTC123TM3, NSBC123TF3 Digital Transistors (BRT) R1 = 2.2 kW, R2 = 8 kW NPN Transistors with Monolithic Bias Resistor Network This series of digital transistors is designed to replace a single device and its external resistor bias network. The Bias Resistor Transistor (BRT) contains a single transistor with a monolithic bias network consisting of two resistors; a series base resistor and a base emitter resistor. The BRT eliminates these individual.

DTC123TE Features

* Simplifies Circuit Design

* Reduces Board Space

* Reduces Component Count

* S Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC-Q101 Qualified and PPAP Capable

* These Devices are Pb

* Free, Halogen
