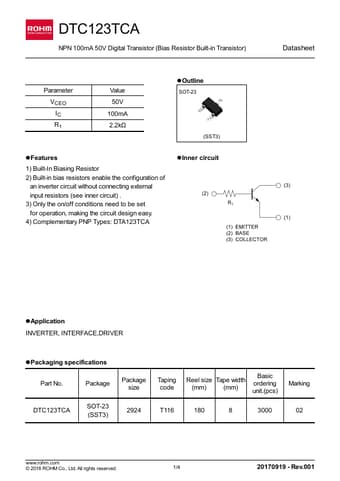

Part number:
DTC123TCA
Manufacturer:
File Size:
1.25 MB
Description:
Digital transistor.
* 1) Built-In Biasing Resistor 2) Built-in bias resistors enable the configuration of an inverter circuit without connecting external input resistors (see inner circuit) . 3) Only the on/off conditions need to be set for operation, making the circuit design easy. 4) Complementary PNP Types: DTA123T
DTC123TCA
1.25 MB
Digital transistor.
