ECH8651R 24V 10A N-Channel Power MOSFET

ECH8651R Description

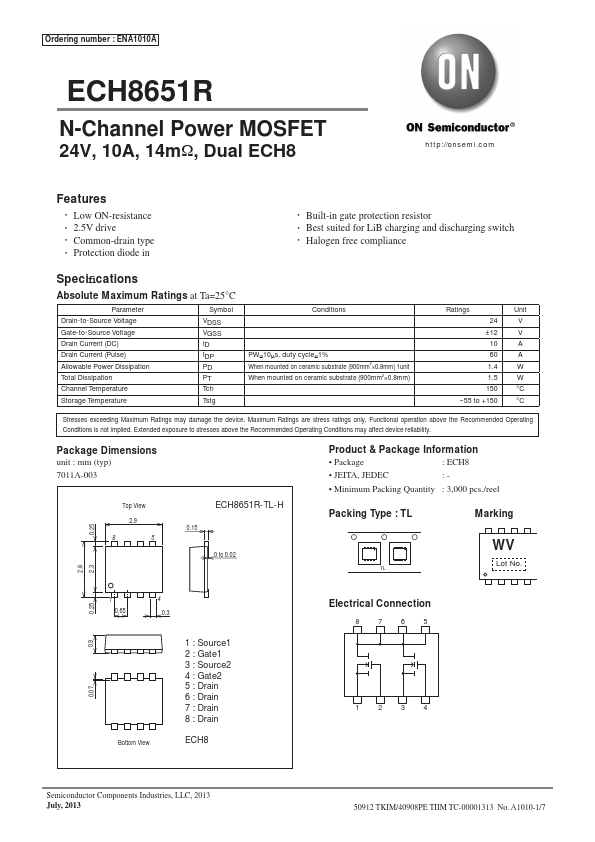

Ordering number : ENA1010A ECH8651R N-Channel Power MOSFET 24V, 10A, 14mΩ, Dual ECH8 http://onsemi.com .

ECH8651R Features

* Low ON-resistance
* 2.5V drive
* Common-drain type
* Protection diode in
* Built-in gate protection resistor
* Best suited for LiB charging and discharging switch
* Halogen free compliance Specifications Absolute Maximum Ratings at Ta=25°C

📥 Download Datasheet

Preview of ECH8651R PDF

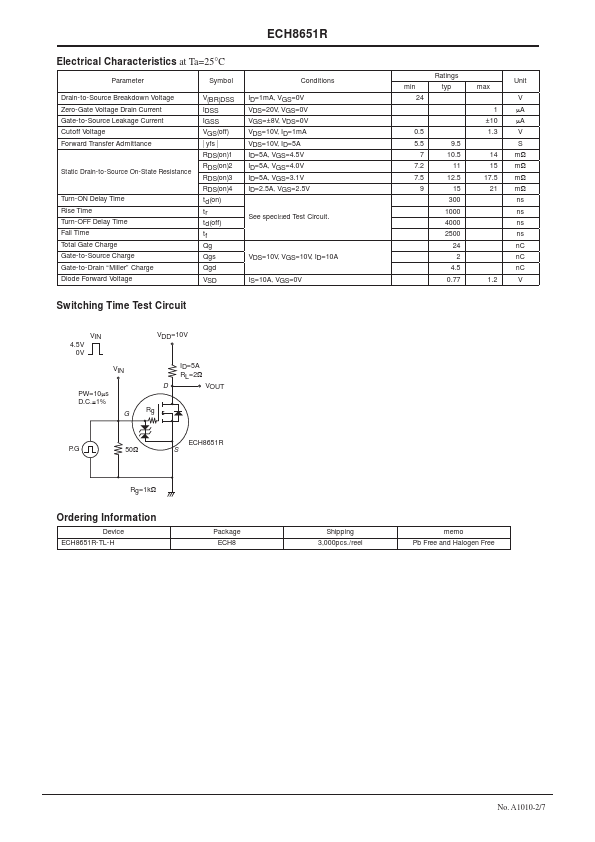

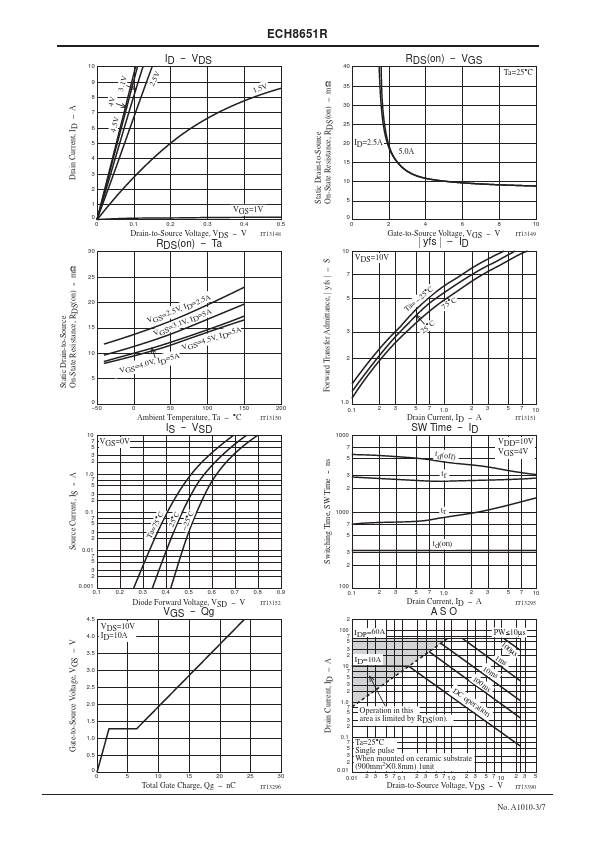

datasheet Preview Page 2 datasheet Preview Page 3
