EMG2DXV5 Datasheet - ON Semiconductor

EMG2DXV5 - Dual Bias Resistor Transistors

EMG2DXV5, EMG5DXV5 Dual Bias Resistor Transistors NPN Silicon Surface Mount Transistors with Monolithic Bias Resistor Network This new series of digital transistors is designed to replace a single device and its external resistor bias network.

The BRT (Bias Resistor Transistor) contains a single transistor with a monolithic bias network consisting of two resistors; a series base resistor and a base emitter resistor.

The BRT eliminates these individual components by integrating them int

EMG2DXV5 Features

* Simplifies Circuit Design

* Reduces Board Space

* Reduces Component Count

* Moisture Sensitivity Level: 1

* Available in 8 mm, 7 inch Tape and Reel

* Lead

* Free Solder Plating

* These Devices are Pb

* Free, Halogen Free/BFR Free

EMG2DXV5-ONSemiconductor.pdf

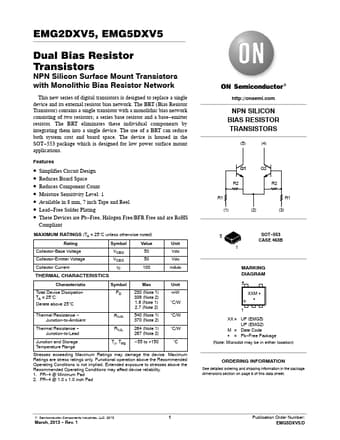

Preview of EMG2DXV5 PDF
EMG2DXV5 Datasheet Preview Page 2 EMG2DXV5 Datasheet Preview Page 3

Datasheet Details

Part number:

EMG2DXV5

Manufacturer:

ON Semiconductor ↗

File Size:

109.38 KB

Description:

Dual bias resistor transistors.
