EMG2 - NPN 100mA 50V Complex Digital Transistors

Name: EMG2
SKU: EMG2-567448

Rohm

The EMG2 by Rohm is a NPN 100mA 50V Complex Digital Transistors. Below is the official datasheet preview.

Datasheet Details

Part number	EMG2
Manufacturer	ROHM
File Size	437.29 KB
Description	NPN 100mA 50V Complex Digital Transistors
Datasheet	EMG2_Rohm.pdf

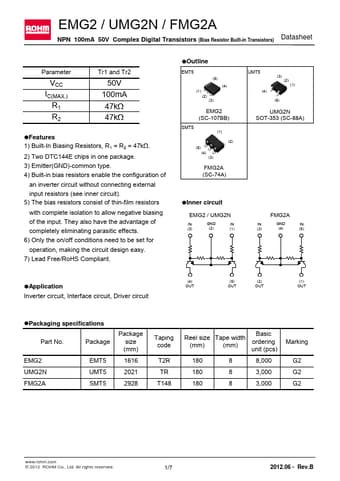

Additional preview pages of the EMG2 datasheet.

1) Two DTC144E chips in a EMT or UMT or SMT package. 2) Mounting cost and area can be cut in half. zExternal dimensions (Unit : mm) EMG2 0.22 (4) (3) (2) (5) zStructure Dual NPN digital transistor (each with a single built in resistors) ROHM : EMT5 0.13 1.2 1.6 (1) Each lead has same dimensions Abbreviated symbol : G2 0.65 0.65 The following characteristics apply to both the DTr1 and DTr2. UMG2N (4) (3) 0.5 0.5 0.5 1.0 1.6 1.3 0.2 (5) 1.25 0.15 zEquivalent circuit EMG2 / UMG2N.
