EMG1 - dual digital transistors

Name: EMG1
SKU: EMG1-214440

Rohm

The EMG1 by Rohm is a dual digital transistors. Below is the official datasheet preview.

Datasheet Details

Part number	EMG1
Manufacturer	ROHM
File Size	67.34 KB
Description	dual digital transistors
Datasheet	EMG1_Rohm.pdf
Additional preview pages of the EMG1 datasheet.

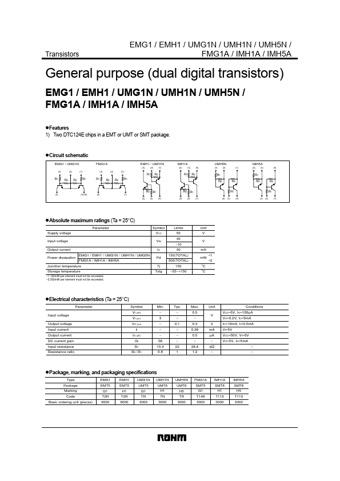

1) Two DTC124E chips in a EMT or UMT or SMT package. !Circuit schematic EMG1 / UMG1N (3) (2) (1) FMG1A (3) (4) (5) EMH1 / UMH1N (3) (2) (1) IMH1A (4) (5) (6) UMH5N (3) (2) (1) IMH5A (4) (5) (6) R1 R1 R2 R2 R1 R1 R2 R2 R1 R2 R1 R2 R1 R2 R2 R1 (1) (4) (5) (6) R1 R2 R2 R1 (3) (2) (1) R2 (4) (5)/(6) (2) (1) (4) R1 (5) (6) (3) R2 R1 (2) !Absolute maximum ratings (Ta = 25°C) Parameter Supply voltage Input voltage Output current Power dissipation EMG1 / EMH1 / UMG1N / UMH1N / UMG5N FMG.
