EMI7206MU Datasheet, Filter, ON Semiconductor

✔ EMI7206MU Features

Benefits
$16 kV ESD Protection on Each Channel (IEC61000
4
2 Level 4, Contact Discharge)
L/C Values of 17 nH and 12 pF Deliver Exceptional S21 Performance Characteris

✔ EMI7206MU Application

where wireless interference must be minimized. The specified attenuation range is very effective in minimizi

PDF File Details

ON Semiconductor manufacturer logo

Part number:

EMI7206MU

Manufacturer:

ON Semiconductor ↗

File Size:

171.74kb

Download:

📄 Datasheet

Description:

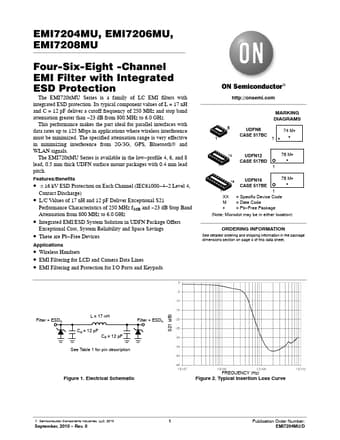

Four-six-eight -channel emi filter. Figure 1. Electrical Schematic S21 (dB) FREQUENCY (Hz) Figure 2. Typical Insertion Loss Curve © Semiconductor Components Industri
