EMI7208MU, EMI7204MU, Four-Six-Eight -Channel EMI Filter

EMI7204MU, EMI7206MU, EMI7208MU Four-Six-Eight -Channel EMI Filter with Integrated ESD Protection The EMI720xMU Series is a family of LC EMI filters .
Figure 1.

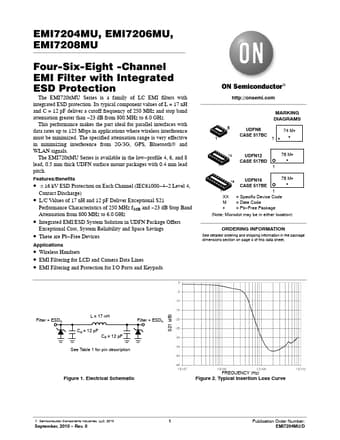

datasheet Preview Page 1 from Datasheet4u.com

EMI7204MU-ONSemiconductor.pdf

EMI7208MU Datasheet Preview — This datasheet PDF includes multiple part numbers: EMI7208MU, EMI7204MU. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

EMI7208MU, EMI7204MU

Manufacturer:

ON Semiconductor ↗

File Size:

171.74 KB

Description:

Four-Six-Eight -Channel EMI Filter

Note:

This datasheet PDF includes multiple part numbers: EMI7208MU, EMI7204MU.
Please refer to the document for exact specifications by model.

Features

* Benefits
* $16 kV ESD Protection on Each Channel (IEC61000
* 4
* 2 Level 4, Contact Discharge)
* L/C Values of 17 nH and 12 pF Deliver Exceptional S21 Performance Characteristics of 250 MHz f3dB and
* 23 dB Stop Band Attenuation from 800 MHz to 6.0 GHz
* In

Applications

* where wireless interference must be minimized. The specified attenuation range is very effective in minimizing interference from 2G/3G, GPS, Bluetooth® and WLAN signals. The EMI720xMU Series is available in the low
* profile 4, 6, and 8 lead, 0.5 mm thick UDFN surface mount packages with 0.4 m
