FAD6263

Half-Bridge Gate Driver

Image Manufacturer B2B MPN Description Distributor Stock Quantity Price Buy Now
Distributor onsemi FAD6263M1X IC HALF BRIDGE DRIVER 3A 16SOIC DigiKey 4803 1000 units
$1.31

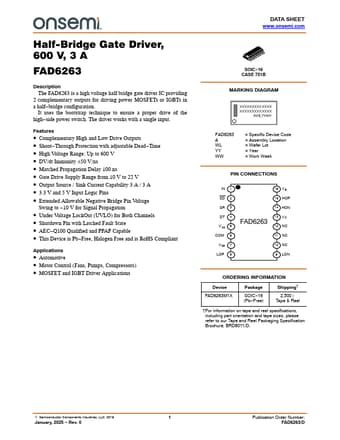

FAD6263 Datasheet (263.17 KB)

Preview of FAD6263 PDF

Datasheet Details

Part number:

FAD6263

Manufacturer:

ON Semiconductor ↗

File Size:

263.17 KB

Description:

Half-bridge gate driver.

FAD6263 Features

* Complementary High and Low Drive Outputs

* Shoot

* Through Protection with adjustable Dead

* Time

* High Voltage Range: Up to 600 V

* DV/dt Immunity ±50 V/ns

* Matched Propagation Delay 100 ns

* Gate Drive Supply Range from 10 V to 22 V

FAD6263 General Description

The FAD6263 is a high voltage half bridge gate driver IC providing 2 complementary outputs for driving power MOSFETs or IGBTs in a half

*bridge configuration. It uses the bootstrap technique to ensure a proper drive of the high

*side power switch. The driver works with a single input. .
