FAD7191 Datasheet - onsemi

Automotive Gate Driver

FAD7191 Features

* make this device suitable for controlling direct injection actuators and for use in many automotive DC

* DC converter and motor control applications. Features

* Floating Channel for Bootstrap Operation to +600 V

* 4.5 A Sourcing and 4.5 A Sinking Current Driving Capability

FAD7191 General Description

The FAN7191 / FAD7191 is a monolithic high * and low *side gate *driver IC, which can drive high speed MOSFETs and IGBTs that operate up to +600 V. It has a buffered output stage with all NMOS transistors designed for high pulse driving capability and minimum cross *condu.

FAD7191 Datasheet (465.02 KB)

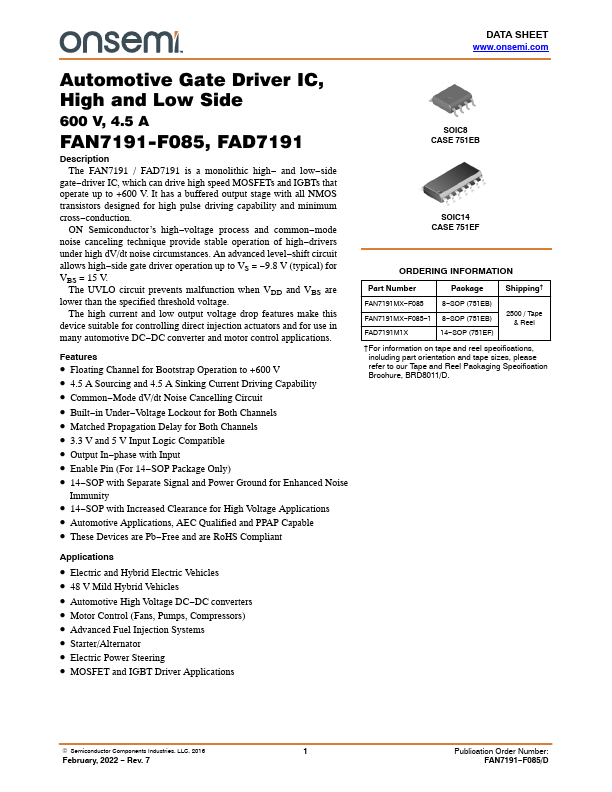

FAD7191 Datasheet Preview — Preview of FAD7191 PDF

Datasheet Details

Part number:

FAD7191

Manufacturer:

onsemi

File Size:

465.02 KB

Description:

Automotive gate driver.
