FAD7191-F085, FAD7191 Datasheet - onsemi

FAD7191-F085 Automotive Gate Driver

The FAN7191 / FAD7191 is a monolithic high * and low *side gate *driver IC, which can drive high speed MOSFETs and IGBTs that operate up to +600 V. It has a buffered output stage with all NMOS transistors designed for high pulse driving capability and minimum cross *condu.

FAD7191-F085 Features

* make this device suitable for controlling direct injection actuators and for use in many automotive DC

* DC converter and motor control applications. Features

* Floating Channel for Bootstrap Operation to +600 V

* 4.5 A Sourcing and 4.5 A Sinking Current Driving Capability

FAD7191-onsemi.pdf

This datasheet PDF includes multiple part numbers: FAD7191-F085, FAD7191. Please refer to the document for exact specifications by model.

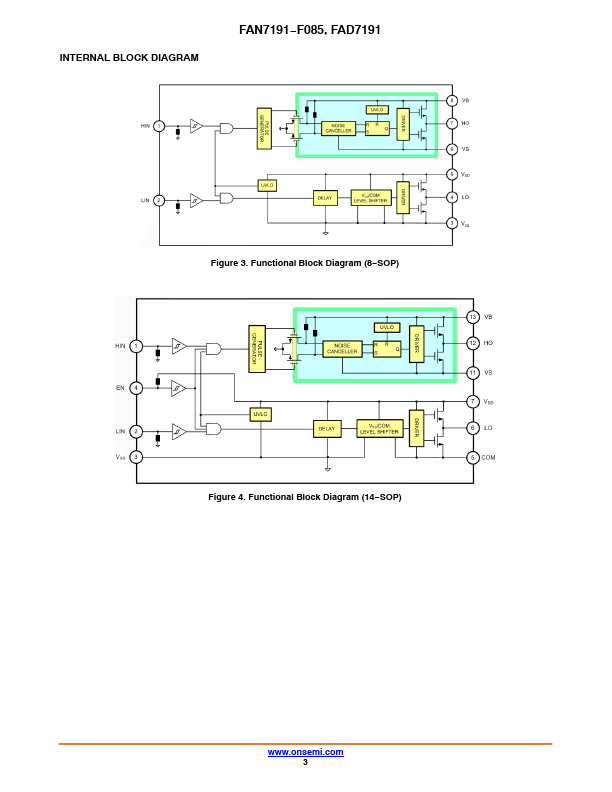

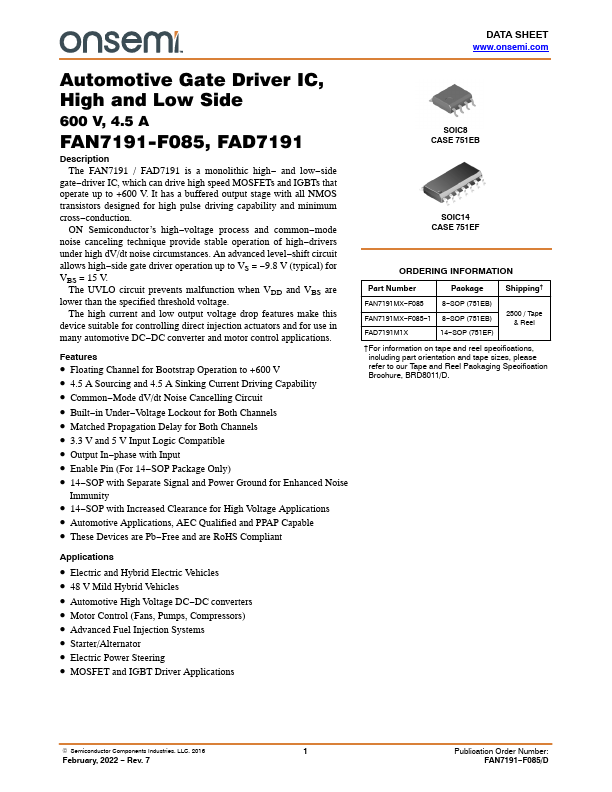

FAD7191-F085 Datasheet Preview Page 2 FAD7191-F085 Datasheet Preview Page 3

Datasheet Details

Part number:

FAD7191-F085, FAD7191

Manufacturer:

onsemi

File Size:

465.02 KB

Description:

Automotive gate driver.

Note:

This datasheet PDF includes multiple part numbers: FAD7191-F085, FAD7191.
Please refer to the document for exact specifications by model.
