FCPF250N65S3L1-F154

N-Channel MOSFET

FCPF250N65S3L1-F154 Features

* 700 V @ TJ = 150°C

* Typ. RDS(on) = 210 mW

* Ultra Low Gate Charge (Typ. Qg = 24 nC)

* Low Effective Output Capacitance (Typ. Coss(eff.) = 248 pF)

* 100% Avalanche Tested

* These Devices are Pb

* Free and are RoHS Compliant Applications

FCPF250N65S3L1-F154 General Description

SUPERFET III MOSFET is ON Semiconductor’s brand

*new high voltage super

*junction (SJ) MOSFET family that is utilizing charge balance technology for outstanding low on

*resistance and lower gate charge performance. This advanced technology is tailored to minimize conduction loss.

FCPF250N65S3L1-F154 Datasheet (246.56 KB)

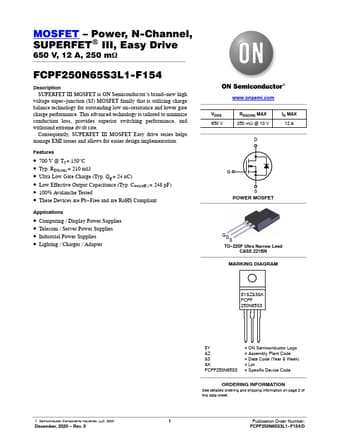

Preview of FCPF250N65S3L1-F154 PDF

Datasheet Details

Part number:

FCPF250N65S3L1-F154

Manufacturer:

ON Semiconductor ↗

File Size:

246.56 KB

Description:

N-channel mosfet.
