FGD2736G3-F085, N-Channel IGBT

FGD2736G3-F085 EcoSPARKTM 270mJ, 360V, N-Channel Ignition IGBT FGD2736G3-F085 EcoSPARKTM 3 270mJ, 360V, N-Channel Ignition IGBT .

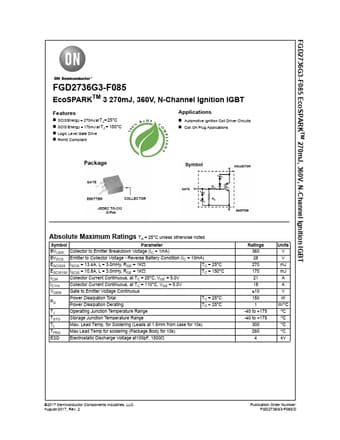

datasheet Preview Page 1 from Datasheet4u.com

FGD2736G3-F085-ONSemiconductor.pdf

FGD2736G3-F085 Datasheet Preview — Preview of FGD2736G3-F085 PDF

Datasheet Details

Part number:

FGD2736G3-F085

Manufacturer:

ON Semiconductor ↗

File Size:

0.98 MB

Description:

N-Channel IGBT

Features

* SCIS Energy = 270mJ at TJ= 25°C
* SCIS Energy = 170mJ at TJ = 150°C
* Logic Level Gate Drive

Applications

* Automotive Ignition Coil Driver Circuits
* Coil On Plug Applications Absolute Maximum Ratings TA = 25°C unless otherwise noted Symbol Parameter BVCER BVECS ESCIS25 Collector to Emitter Breakdown Voltage (IC = 1mA) Emitter to Collector Voltage - Reverse Battery Condition (IC = 10mA)
