FGD2N40L - 400V N-Channel Logic Level IGBT

Fairchild Semiconductor

📥 Download Datasheet

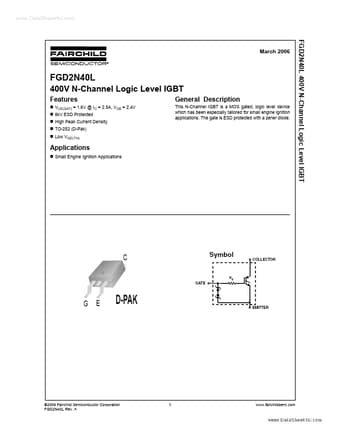

FGD2N40L Datasheet Preview — Preview of FGD2N40L PDF

Datasheet Details

Part number: FGD2N40L
Manufacturer: Fairchild Semiconductor
File Size: 254.31 KB
Datasheet: FGD2N40L_FairchildSemiconductor.pdf
Description: 400V N-Channel Logic Level IGBT

FGD2N40L Product details

Description

This N-Channel IGBT is a MOS gated, logic level device which has been especially tailored for small engine ignition applications. Small Engine Ignition Applications ©2006 Fairchild Semiconductor Corporation FGD2N40L Rev.A 1 www.fairchildsemi.com www.DataSheet4U.com FGD2N40L 400V N-Channel Logic Level IGBT Device Maximum Ratings TA= 25°C unless otherwise noted Symbol BVCES IC ICP VGES VGEP PD TJ TSTG ESD Parameter Collec

Features

VCE(SAT) = 1.6V @ IC = 2.5A, VGE = 2.4V.
6kV ESD Protected.
High Peak Current Density.
TO-252 (D-Pak).
Low VGE(TH) General.
