IMD10AMT1G Datasheet - ON Semiconductor

IMD10AMT1G Dual Bias Resistor Transistor

IMD10AMT1G Dual Bias Resistor Transistor NPN and PNP Silicon Surface Mount Transistors with Monolithic Bias Resistor Network High Current: IC = 500 mA max This is a Pb Free Device MAXIMUM RATINGS (TA = 25°C) Rating Symbol Value Unit Collector Base Voltage V(BR)CBO 50 Collector Emitter Voltage V(BR)CEO 50 Emitter Base Voltage V(BR)EBO 5.0 Collector Current Continuous IC 500 THERMAL CHARACTERISTICS Vdc Vdc Vdc mAdc .

IMD10AMT1G-ONSemiconductor.pdf

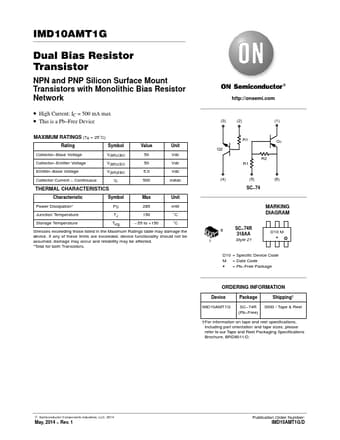

Preview of IMD10AMT1G PDF
IMD10AMT1G Datasheet Preview Page 2 IMD10AMT1G Datasheet Preview Page 3

Datasheet Details

Part number:

IMD10AMT1G

Manufacturer:

ON Semiconductor ↗

File Size:

54.07 KB

Description:

Dual bias resistor transistor.
