IMD10A - Power management Transistors

IMD10A Description

IMD10A Power management (dual digital transistors) Datasheet *.

IMD10A Features

* 1) Two digital class transistors in a SMT package. 2) Up to 500mA can be driven. 3) Low VCE(sat) of drive transistors for low power dissipation.
* Package, marking, and packaging specifications Part No. IMD10A Package SMT6 Marking D10 Code T108 Basic ordering unit (pieces) 3000
* D

📥 Download Datasheet

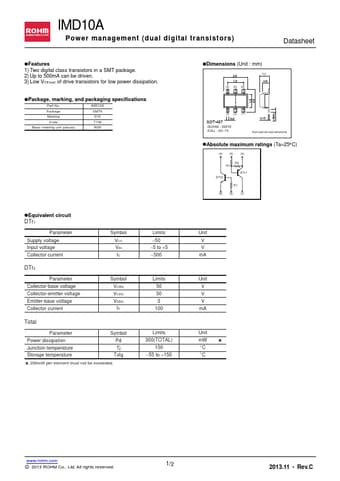

Preview of IMD10A PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
IMD10A
Manufacturer
ROHM ↗
File Size
524.13 KB
Datasheet
IMD10A_Rohm.pdf
Description
Power management Transistors
