IMD700A - BLDC Integrated Controller and Smart 3 Phase Gate Driver

IMD700A Description

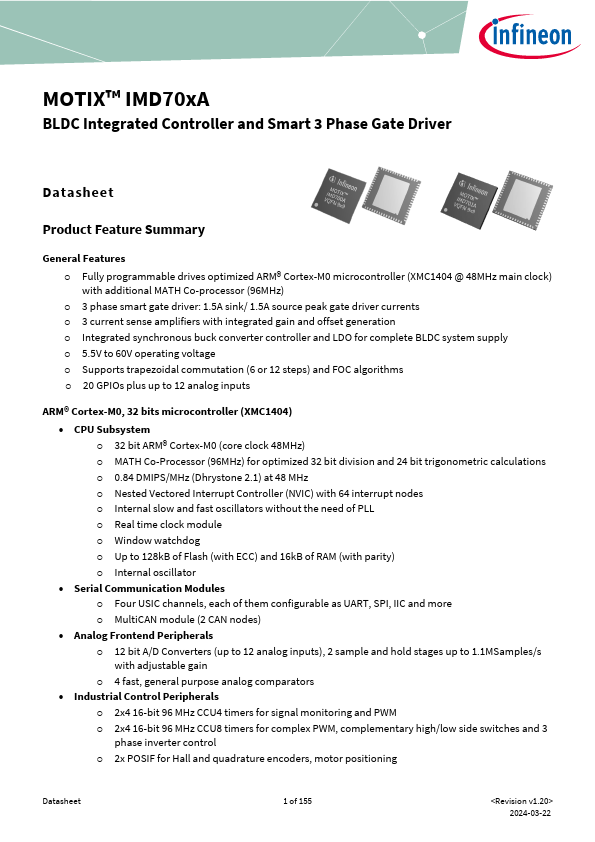

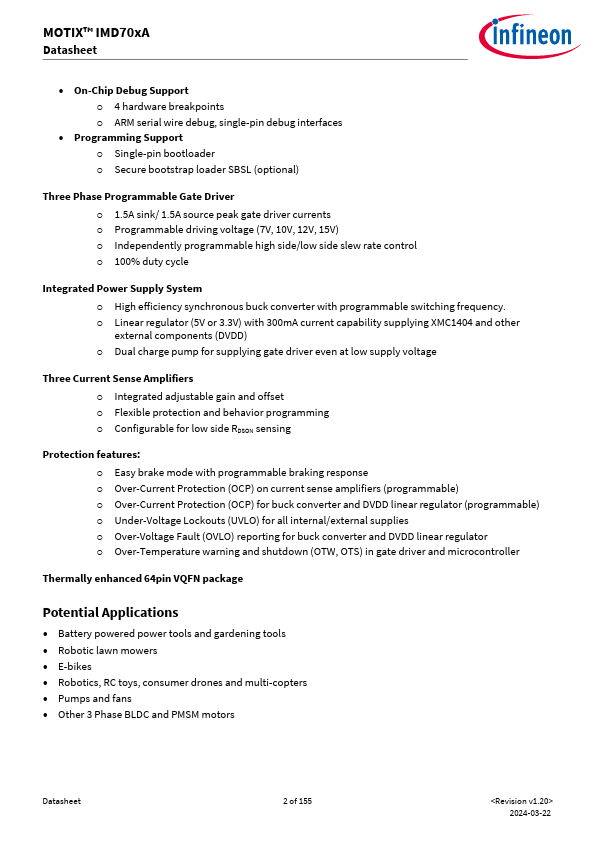

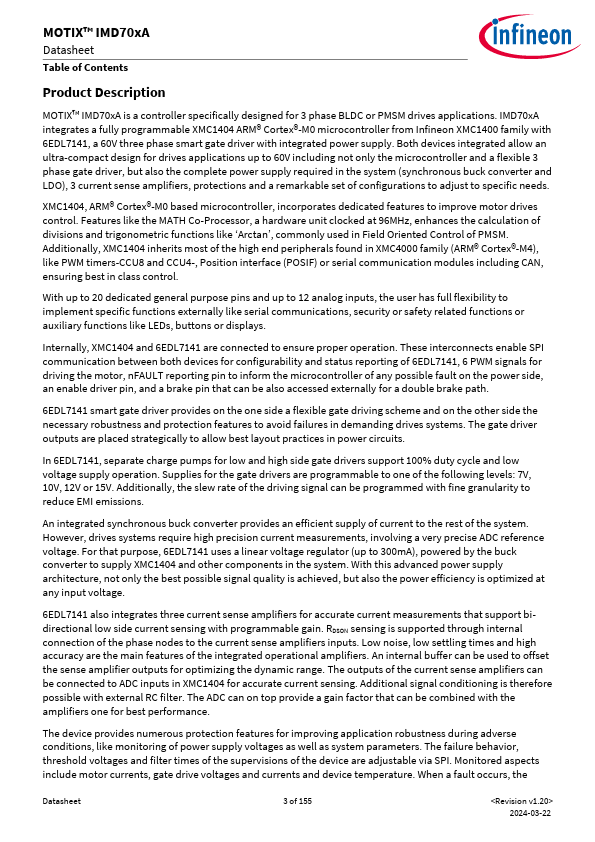

MOTIX™ IMD70xA BLDC Integrated Controller and Smart 3 Phase Gate Driver Datasheet Product .
MOTIX™ IMD70xA is a controller specifically designed for 3 phase BLDC or PMSM drives applications.

IMD700A Features

* o Fully programmable drives optimized ARM® Cortex-M0 microcontroller (XMC1404 @ 48MHz main clock) with additional MATH Co-processor (96MHz) o 3 phase smart gate driver: 1.5A sink/ 1.5A source peak gate driver currents o 3 current sense amplifiers with integrated gain and offset generation o Integrat

IMD700A Applications

* Battery powered power tools and gardening tools
* Robotic lawn mowers
* E-bikes
* Robotics, RC toys, consumer drones and multi-copters
* Pumps and fans
* Other 3 Phase BLDC and PMSM motors Datasheet 2 of 155 2024-03-22 MOTIX™ IMD
