ISL9R1560G2 - Stealth Rectifier

ON Semiconductor

The ISL9R1560G2 by ON Semiconductor is a Stealth Rectifier. Below is the official datasheet preview.

📥 Download Datasheet

ISL9R1560G2 Stealth Rectifier by ON Semiconductor - Datasheet Preview — Official preview page of the **ISL9R1560G2** Stealth Rectifier datasheet (ON Semiconductor).

Datasheet Details

Part number	ISL9R1560G2
Manufacturer	ON Semiconductor
File Size	484.94 KB
Description	Stealth Rectifier
Datasheet	ISL9R1560G2-ONSemiconductor.pdf

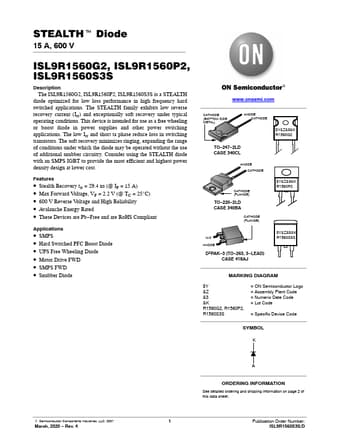

Additional preview pages of the ISL9R1560G2 datasheet.

ISL9R1560G2 Product details

Description

The ISL9R1560G2, ISL9R1560P2, ISL9R1560S3S is a STEALTH diode optimized for low loss performance in high frequency hard switched applications.The STEALTH family exhibits low reverse recovery current (Irr) and exceptionally soft recovery under typical operating conditions.This device is intended for use as a free wheeling or boost diode in power supplies and other power switching applications.The low Irr and short ta phase reduce loss in switching transistors.The soft recovery minimizes ringi

Features

Stealth Recovery trr = 29.4 ns (@ IF = 15 A).
Max Forward Voltage, VF = 2.2 V (@ TC = 25°C).
600 V Reverse Voltage and High Reliability.
Avalanche Energy Rated.
These Devices are Pb.
Free and are RoHS Compliant.
