LA8153QA Down Converter IC

at Ta  25C, VCC = 3.3V Pin No. Pin voltage Description 1  NC (connect to GND) 2 0.3V PON 3 3.3V SAW Driver VCC 4 0V SAW Driver GND 5 0V RF AGC / MIX / LO GND 6 3.3V RF AGC / MIX / LO VCC 7  NC (connect to GND) 8 1.35V RF AGC Amplifier Input 9 1.35V Equivalent circuit VCC .

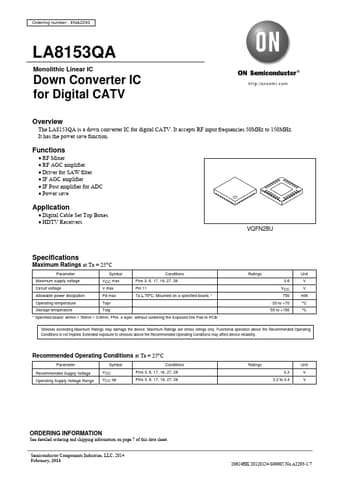

Ordering number : ENA2293 LA8153QA Monolithic Linear IC Down Converter IC for Digital CATV http://onsemi.com Overview The LA8153QA is a down converter IC for digital CATV. It accepts RF input frequencies 50MHz to 150MHz. It has the power save function. Functions RF Mixer RF AGC amplifier Driver for SAW filter IF AGC amplifier IF Post amplifier for ADC Power save Application Digital Cable Set Top Boxes HDTV Receivers VQFN28U Specifications Ma.
