LA8161V

Monolithic Linear IC AGC Amplifier and Pre Amplifier

Sanyo Semicon Device

LA8161V Features

* VCC = 5V

* IF Input Frequency Range

* AGC Amplifier Gain

* AGC Gain Reduction

* AGC Amplifier Output Amplitude

* Pre Amplifier Gain

* Pre Amplifier Output Amplitude 30 to 100MHz 49dB 40dB 2Vp-p (differential) 29dB 2Vp-p Functions

* I

LA8161V General Description

Pin Number 1 16 IF Input Description Equivalent circuit 0.1 (1.3) 0.5 Bias 1kΩ 1 16 1kΩ 2 3 4 5 10 12 13 15 14 AGC/Pre Amp. GND AGC/Pre Amp. VCC Driver Amp. VCC Driver Amp. GND Driver Amp. GND Driver Amp. VCC Continued on next page. No.A0514-3/7 Datasheet pdf - http://www.DataSheet4U.net/ ww.

LA8161V Datasheet (145.11 KB)

LA8161V Datasheet Preview — Preview of LA8161V PDF

Datasheet Details

Part number:

LA8161V

Manufacturer:

Sanyo Semicon Device

File Size:

145.11 KB

Description:

Monolithic linear ic agc amplifier and pre amplifier.

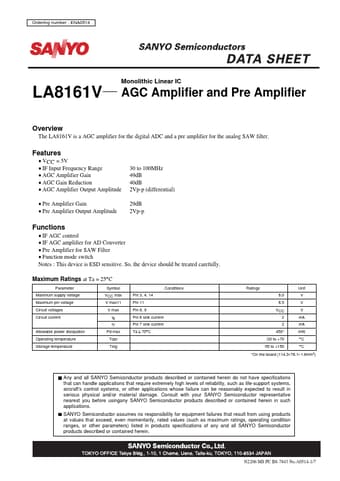

www.DataSheet.co.kr Ordering number : ENA0514 Monolithic Linear IC LA8161V Overview AGC Amplifier and Pre Amplifier The LA8161V is a AGC amplifie.
