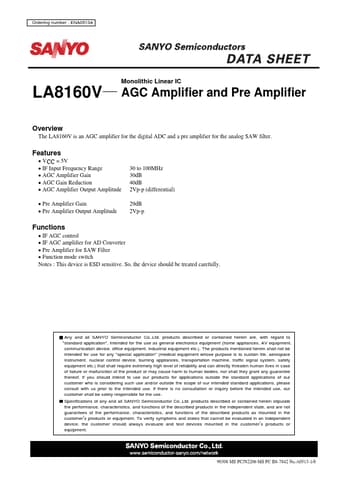

LA8160V AGC Amplifier and Pre Amplifier

Pin Number 1 16 IF Input Description Equivalent circuit 0.1 (1.3) 0.5 Bias 1kΩ 1 16 1kΩ 2 3 4 5 10 12 13 15 14 AGC/Pre Amp. GND AGC/Pre Amp. VCC Driver Amp. VCC Driver Amp. GND Driver Amp. GND Driver Amp. VCC Continued on next page. No.A0513-3/8 Datasheet pdf - http://www.DataSheet4U.net/ w.

LA8160V Features

* VCC = 5V

* IF Input Frequency Range

* AGC Amplifier Gain

* AGC Gain Reduction

* AGC Amplifier Output Amplitude

* Pre Amplifier Gain

* Pre Amplifier Output Amplitude 30 to 100MHz 30dB 40dB 2Vp-p (differential) 29dB 2Vp-p Functions

* I

LA8160V_SanyoSemiconDevice.pdf

LA8160V Datasheet Preview — Preview of LA8160V PDF

Datasheet Details

Part number:

LA8160V

Manufacturer:

Sanyo Semicon Device

File Size:

155.05 KB

Description:

Agc amplifier and pre amplifier.
