LC709203F

Battery Fuel Gauge LSI

LC709203F Features

* HG

* CVR Algorithm Technology

* No External Sense Resistor

* 2.8% Accuracy of RSOC

* Accurate RSOC of Aging Battery

* Automatic Convergence of Error

* Adjustment for the Parasitic Impedance around the Battery

* Simple and Quick Setup

LC709203F General Description

1 B1 TEST I Connect this pin to VSS. 2 A1 VSS * Connect this pin to the battery’s negative ( *) pin. 3 A3 VDD * Connect this pin to the battery’s positive (+) pin. 4 A2 ALARMB O This pin indicates alarm by low output(open drain). Pull-up must be done externally. A.

LC709203F Datasheet (734.76 KB)

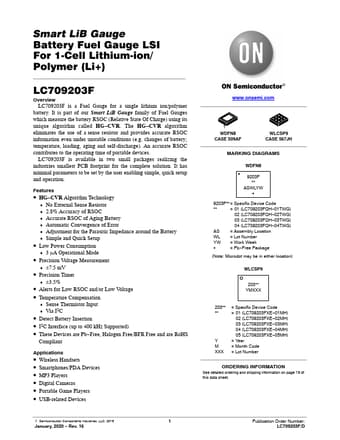

Preview of LC709203F PDF

Datasheet Details

Part number:

LC709203F

Manufacturer:

ON Semiconductor ↗

File Size:

734.76 KB

Description:

Battery fuel gauge lsi.
Smart LiB Gauge Battery Fuel Gauge LSI For 1‐Cell Lithium‐ion/ Polymer (Li+) LC709203F Overview LC709203F is a Fuel Gauge for a single lithium ion/po.
